232BRC - Baud Rate Converter

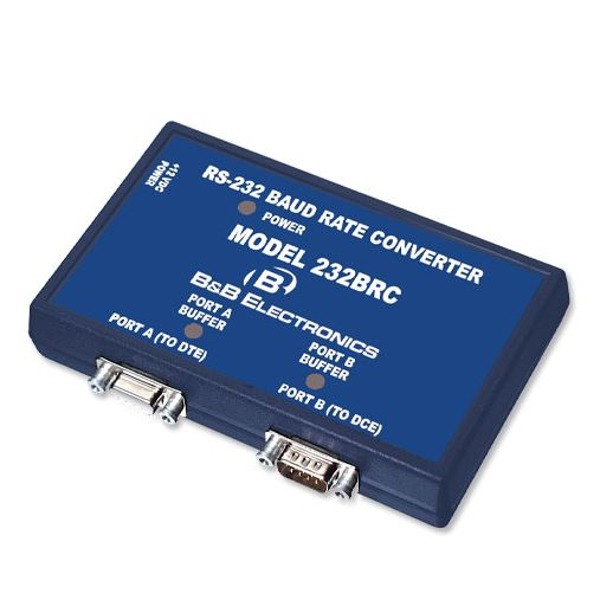

Each side of the RS-232 baud rate converter can be individually configured to suit the device connected to it. The module supports any data rate up to 115.2 kbps and all standard data formats. Each side can also supply or accept hardware or software handshaking, allowing the higher speed device to be located on either port.

A PC is used to configure the Model 232BRC, but once configured, the module may be installed on any system. Non-volatile memory maintains all parameters when power is removed. Each port buffers 16K bytes of data. LED indicators on each port signals when data is present in the buffer.

The connectors are DB9 female on port A, DB9 male on port B. Model 232BRC requires 12 VDC@100 mA. Power supply is not included. Model 232PS is well-matched to this unit. Module dimensions are 5.8 x 3.6 x 1.2 in (14.6 x 9.1 x 3.0 cm).

Specifications

• Interface: RS-232 Asynchronous
• Data Bits: 5,6,7, or 8
• Parity: Even, Odd, or None
• Data Rate: 300 to 115.2 kbps
• Stop Bits: 1 or 2
• Flow Control: Hardware (RTS/CTS), Software (XON/XOFF), or None
• Buffer Memory: 19 Kb SRAM
• LEDs: Buffer A, Buffer B, and Power
• Input Voltage: 12 to 17 VDC @ 60mA max
• Power Connector 2.5 mm jack (positive tip)
• Data Connectors: Port A DB9F (DCE), Port B DB9M (DTE)
• Dimensions: 5.8 x 3.6 x 1.2 in (14.6 x 9.1 x 3.0 cm)
• Software: Windows 95, 98, NT, 2K, XP, Vista Compatible
