EIR-Extend Series - Ethernet Copper Extenders for 1 or 4 Devices

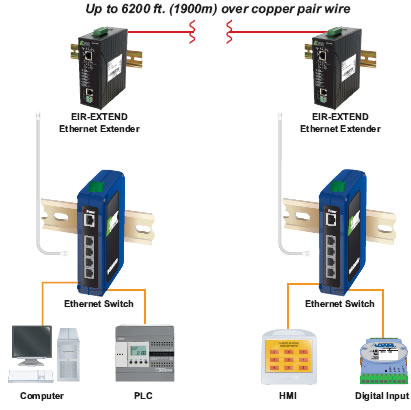

The EIR-EXTEND and EIR-EXTEND-4 Ethernet copper extenders are designed to operate in harsh environments. Functioning at temperatures from (-40 to 75º C), they have been tested for functional operation up to 85º C. Using existing copper wire runs, it allows the extension of Ethernet signals. The EIR-EXTEND (used to connect to 1 remote device) and EIR-EXTEND-4 (used to connect up to 4 remote devices) are the perfect solution for installing Ethernet connectivity on the factory floor. Used in pairs, configuration is easy. Configure one unit as the local device, and the other one as the remote device. External power supplies are required (not included).

Specifications

EIR-EXTEND

• Extender Interface: RJ-11 or Terminal Block
• Ethernet Interface: one 10/100BaseTX port with RJ-45 connector
• Power: Redundant 12 – 30 VDC Terminal Block, 12 VDC – Power Jack (Power Supply Optional)
• Operating Temp: -40º to 75º C (Tested to 85º C)
• Enclosure: DIN Mount IP30 Aluminum

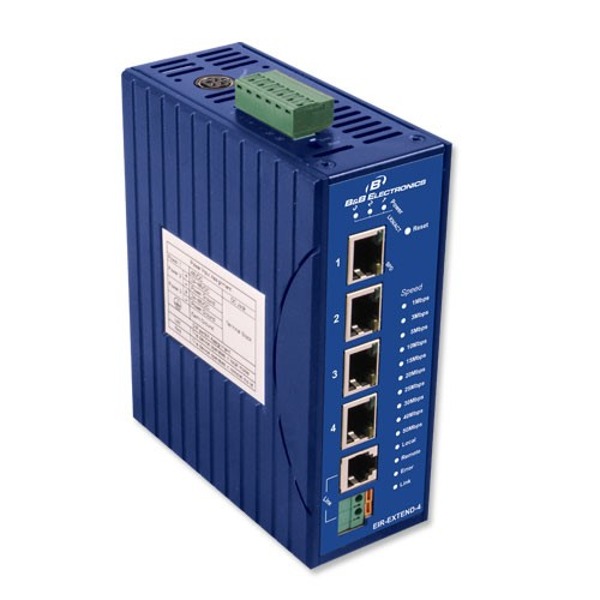

EIR-EXTEND-4

• UL508 and NEMA TS1 & TS2 Environmental requirements for Traffic control equipment
• IEC61000-6-2 EMC for Heavy Industrial environment
• Extender Interface: RJ-11 or Terminal Block
• Ethernet Interface: four 10/100BaseTX port with RJ-45 connector
• Power: Redundant 24 – 48 VDC Terminal Block, 48 VDC – Power Jack (Power Supply Optional)
• Operating Temp: -40º to 75º C (Tested to 85º C)
• Enclosure: DIN Mount IP30 Aluminum
