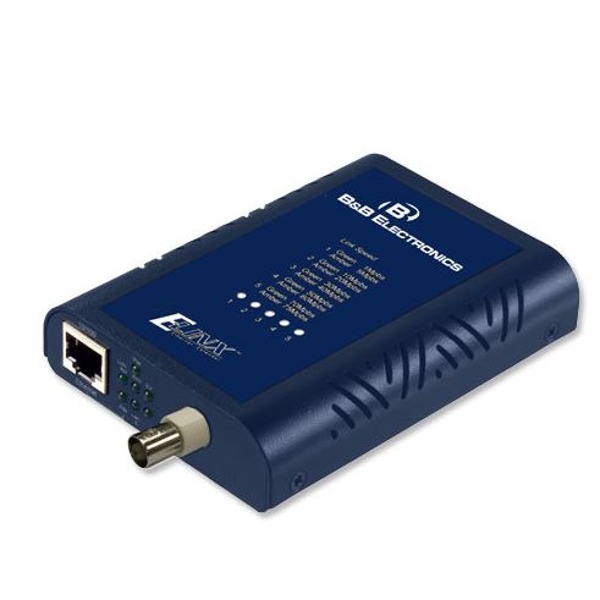

EIS-Extend Series - Ethernet Extenders over Copper or Coaxial
The Ethernet Extender fully complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX standards. Two EIS-EXTEND models are required for the Ethernet extension, (one at each end of your extension points). This product can be used with included power supply or in the EIS-RACK-16, 19 inch rack mount chassis used to house up to 16 EIS-EXTEND’s or EIS media converters.
Features
- One 10/100Base TX (TX) Ethernet port with RJ-45 connector
- Auto negotiation of speed and duplex mode on TX port
- Auto MDIX on Ethernet port
- IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX compliant
- Line port uses common RJ-11 connector
- Line port auto senses the speed of 1/3/5/10/15/20/25/30Mbps
- One DIP switch for configuring local or remote mode
- Status LED’s for monitoring and connection status
- External AC to DC power adapter included
- Used as a stand-alone device or with a 19 inch rack chassis
- Hot-swappable when used in 19 inch rack chassis
