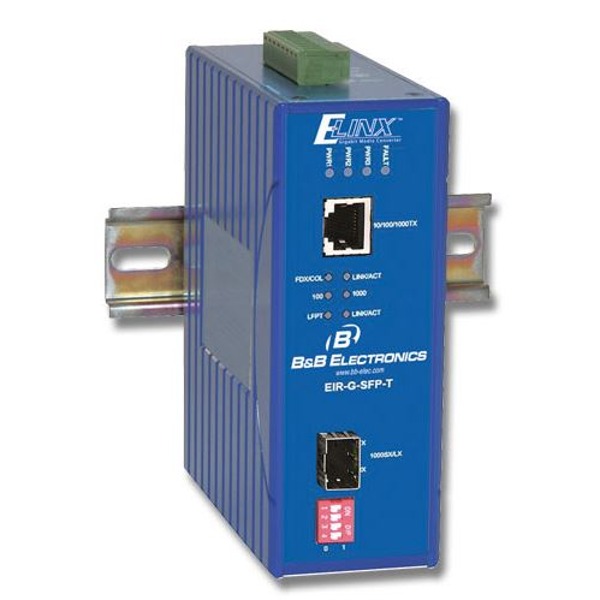

Elinx EIR-G-SFP-T - Gigabit Ethernet zu Glasfaser Konverter

Der Elinx-EIR-G von B+B SmartWorx ist ein Gigabit Ethernet zu Glasfaser Konverter.
Der Elinx-EIR-G von B+B SmartWorx ist ein Gigabit Ethernet zu Glasfaser Konverter.
Der Elinx EIR-G-SFP-T von B+B SmartWorx ist ein industrieller Gigabit Ethernet zu Glasfaser Medienkonvert mit SFP Port, Link Fault Pass-Through und Betriebstemperaturen von -40°C bis 75°C.


zum Merkzettel hinzufügen

Datenblatt zusenden


Elinx EIR-G-SFP-T - Gigabit Copper To Gigabit Fiber SFP Media Converter

The EIR-G-SFP-T, Gigabit Ethernet media converters are designed to operate in harsh environments. The EIR-G-SFP-T functions at temperatures ranging from -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @ -40°C to 85°C (-40°F to 185°F). Whether on the factory floor or the Street corner, the EIR-G-SFP-T will provide flawless communications when you need it most. EIR-G-SFP-T offers 1000Base SFP socket to support multi-mode/single-mode fiber optics. The RJ-45 port on this unit provides Auto-MDIX and auto-negotiation. The link-fault-pass-through feature allows the network management agent on adjacent equipment to react to a broken link. Flexibility is the main feature of the EIR-G-SFP-T, it may be DIN rail or panel mounted, and comes with power options to match the applications that require a tough, environmentally hardened, Gigabit Ethernet media converter.

Specifications

  • Complies with NEMA TS1 & TS2 Environmental requirements for Traffic control equipment
  • Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
  • DIP switch configuration for "Link-Fault-Pass-Through", fiber auto/force mode, link down alarm
  • 1000Mbps-Full-duplex, Auto-Negotiation, Auto-MDI/MDIX
  • SFP socket for Gigabit fiber optic expansion
  • Full wire-speed forwarding rate
  • Alarms for power and port link failure by relay output
  • Redundant power inputs with Terminal Block and DC Jack
  • -40°C to 75°C (-40°F to 167°F) operating temperature range
  • Hardened aluminum case
  • Supports DIN-Rail or Panel Mounting installation
  • Vibration, Shock, Free Fall tested

 Regulatory

  • Safety - EN60950-1, IEC60950-1
  • EMI - FCC Part 15, Class A
  • VCCI, Class A
  • EN61000-6-3: EN55022, EN61000-3-2, EN61000-3-3
