IE-MiniMc LFPT/Telco Serie - Industrieller Medienkonverter mit LFPT/TELCO

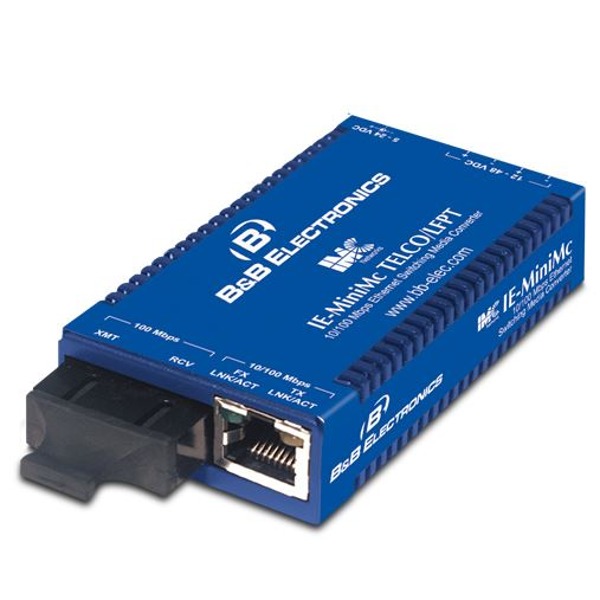

IE-MiniMc LFPT/Teclo Series - Industrial Grade 10/100 Miniature Media Converters

Measuring less than 3.5 inches deep and 2 inches wide, the IE-MiniMc Series converters are some of the industry’s smallest copper-to-fiber media converters, with both data connections on the same side. The IE-MiniMc family of media converters are a fraction of the cost of other industrial grade alternatives. These products provide the ease and convenience of plug-and-play operation with features including Auto Negotiation and Auto-Cross.

Advanced features such as Link Fault Pass-Through (LFPT) assist operators in identifying breaks in the network when using unmanaged network hardware. Multiple powering options include Power over Ethernet (PoE/PD), -48 VDC for Telco, AC wall adapter and USB, which offers unsurpassed flexibility for a variety of installations.

Spezifikationen

Technische

• IEEE 802.3 10Base-T twisted pair
• IEEE 802.3u 100Base-TX twisted pair
• IEEE 802.3u 100Base-FX fiber
• IEEE 802.3af Power Over Ethernet
• Supports jumbo packets up to 1916 bytes
• Plug-and-play operation
• RJ45 and ST or SC ports available
• 50/125µm or 62.5/125µm multi-mode fiber
• 9/125µm single-mode fiber
• Available with single-strand fiber support
• Includes terminal DC power block
• Country-specific, high-reliability power adapter
• Auto Negotiation
• Auto-Cross for MDI/MDIX
• Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10 Mbps, 148,100 pps for 100 Mbps)
• Status LEDs

Mechanische

• Dimensions 0.83”H x 1.80”W x 3.35”D (2.11 x 4.57 x 8.51 cm)
• Shipping Weight 0.7 lbs (.317 kg)

Eingang

• DC Terminal (Telco): 12 to 48 VDC
• Barrel Connector: 5 to 24 VDC
• PoE: Maximum supply voltage is 50V

Umgebung

• Operating Temperature: DC or PoE (PD) -13° F to 185° F (-25° C to +85° C)
• Operating Temperature: AC wall adapter +14° F to +122° F (-10° C to +50° C)
• Storage Temperature: -13° F to +185° F (-25° C to +85° C)
• Operating Humidity 5% to 95% (non-condensing)

Zertifikate

• FCC Class A (using DC terminal or PoE power)
• FCC Class B (using any DC jack, optional)
• UL/cUL, CSA, CE
