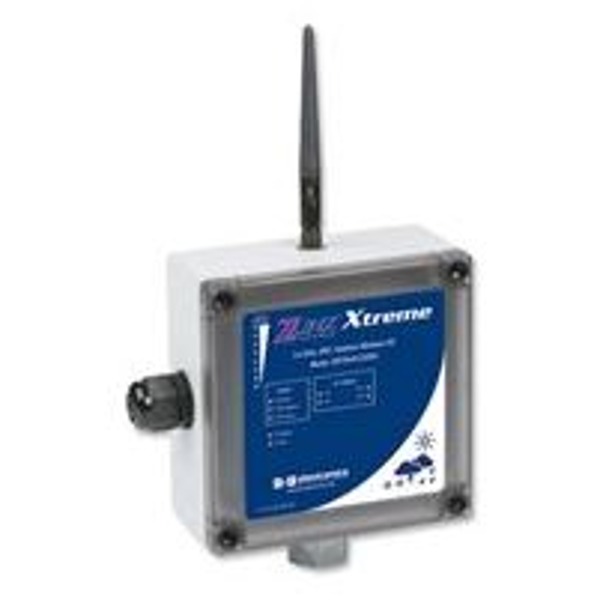

ZXT24-IO-222R2 - Zlinx Extreme I/O

ZXT24-IO-222R2 - Wireless Analog and Digital I/Os

The Zlinx Xtreme I/O modules are ideal for outdoor applications that require monitoring and control of remote analog and digital devices. Two configurations are allowed:

(1) Peer-to-Peer mode - Two identical I/O modules are used for Wire Replacement applications, with analog and digital inputs at one end mapped to the corresponding outputs at the other end.

(2) Modbus I/O mode - Modbus RTU master (PLC/SCADA/HMI) controls and monitors remote Zlinx Xtreme I/O modules through serial radio modem.

Specifications

• IP67 outdoor rating
• Frequency: ISM band, 902 to 928 MHz and 2.4 to 2.4385 GHz
• Modulation: FSK – Frequency Shift Keying
• Spread Spectrum Technology: 2.4 GHz - DSSS; 900 MHz - FHSS
• 8-LED Signal Strength Indicator
• Radio Power: 2.4 GHz - 10mW to 63 mW; 900 MHz - 1 mW to 1W
• EN 61000-6-2 Generic Standards for Industrial Environments
• Receiver Sensitivity: 2.4GHz - 102 dBm; 900 MHz - 112dBm
• Versatile Power Supply Input: 10 to 30VDC
• Wide Temperature Range: -40°C to 74°C
• AES Security: 2.4 GHz - 128-bit encryption; 900 MHz - 256 encryption
• Latency: 2.4 GHz – 25mS; 900 MHz-55mS
• Compatible with Maxstream radios & Zlinx Generation II indoor models
• High resolution analog inputs - 16 bit; outputs - 12 bit
