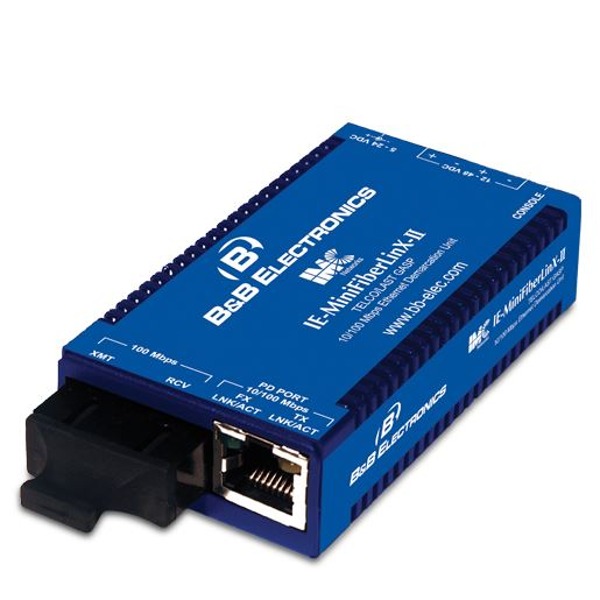

IE-MiniFiberLinX-II Telco/LastGasp Series - 10/100 Mbps Managed Optical Demarcation Compact CPE Device

The compact IE-MiniFiberLinX-II/Telco/LastGasp is one of the most versatile fiber optic NID devices available on the market today. It provides point-to-point fiber optic connections with a unique management tool to monitor the entire link between two locations. IE-MiniFiberLinX-II/Telco/Last Gasp was designed to work with -48 VDC power that is compliant with the Bellcore GR-499 specification, supporting the minimum and maximum transient voltages, typically required by transport equipment used in Telco environments. Additionally, the product offers Last Gasp, a Trap notification feature that identifies when the power lines are down or of a possible power supply failure. Other key features include; carrier grade remote SNMP management, extra tagging using Q-in-Q, and PoE (Power over Ethernet).

As a copper-to-fiber converter, the IE-MiniFiberLinX-II/Telco/LastGasp supports multiple fiber types including multimode, single-mode, single-strand fiber (SSF), and Course Wavelength Division Multiplexing (CWDM) functionality to increase the capacity of existing fiber. As a remote, CPE device, it can be connected via the fiber segment to an iMcV-FiberLinX-II Host module to support Host/Remote management.

Equipped with one 100 Mbps fiber data port, one 10/100 twisted pair port for data and management, as well as an auxiliary port designed to function as a serial port (when used with the included adapter), the IE-MiniFiberLinX-II/Telco/LastGasp also offers multiple powering options: AC power (with included adapter), DC (through a 4-terminal power block).

Spezifikationen

• Preserves complete end-to-end fiber connection integrity
• Bi-directional bandwidth control (per port, per direction, per VLAN)
• Read/write IEEE 802.1Q VLAN-tags
• Extra Tagging with Q-in-Q mode (802.1p)
• Supports passive 802.3ah OAM (Operation, Administration & Management)
• QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of priority)
• VLAN filtering up to 32 values
• Layer 2 packet switching, store and forward operation
• Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps
• AutoCross for MDI/MDIX
• Features Auto Negotiation and Selective Advertising
• Supports Half and Full-Duplex operation
• MTU: Supports over-sized packets up to 1916 bytes per packet

Sicherheit

• Password Control
• Multiple Access Levels: User Assigned Accounts & Access Levels

Management

• SNMP V1 and V2c compatible
• Includes GUI-based iView² software for remote management and upgrades
• Monitors far-end (remote) status without a physical presence or separate connection
• IEEE 802.3x Flow Control
• Includes DHCP and TFTP clients
• Supports Telnet
• Includes loopback test modes (MAC swap)
• Includes LinkLoss and FiberAlert
• Remote capabilities with built-in support for UMA (IP-less management)
• RS-232 (Craft) interface for local management
• Serial cable for direct connection to a PC’s Serial Port

Unterstützte Ethernet Protokolle

• EEE 802.3i 10Base-T twisted pair
• IEEE 802.3u 100Base-TX twisted pair
• IEEE 802.3u 100Base-FX or SX fiber

Mechanische

• Dimensions 0.83”H x 1.80”W x 3.35”D (2.11 x 4.57 x 8.51 cm)

Strom

• AC Wall Adapter: 100 to 240 VAC ±10% input, 5 VDC output, 2A max.
• DC Input Voltage: 12 to 48 VDC *, 1 to .02A, 7 to 50 VDC, 1 to 0.1A

Umgebung

• Operating Temperature
     +14° to +122° F (-10° to +50° C) AC Adapter
     -13° to +167° F (-25° to +75° C) DC Adapter
     -49° to +185° F (-45° to +85° C) DC Telco
• Storage Temperature -49° to +185° F (-45° to +85° C)
• Operating Humidity 5 to 95% Non-condensing

Zertifikate

• FCC Class A
• UL/cUL, CE, CSA, CB
