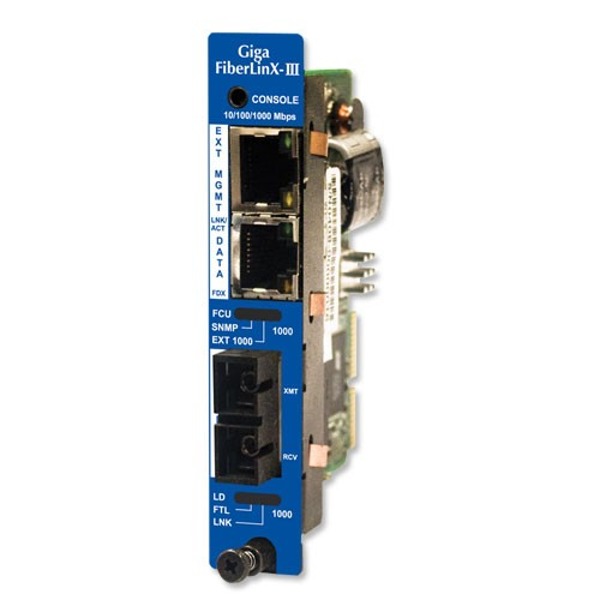

IMCV-Giga-FiberLinX-III Serie - Optisches Demarcation Modul mit 10/100/1000 Mbps

IMCV-Giga-FiberLinX III Series -  10/100/1000 Mbps Managed Optical Demarcation Module

The iMcV-Giga-FiberLinX-III intelligent media converter connects a Host/Remote Ethernet network over a fiber optic or CAT 5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting, including OAM (Operations, Administration and Maintenance), Extra-Tagging and EtherType control functionality. With the iMcV-Giga-FiberLinX-III, administrators can observe the end-points over the fiber segment between them, as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a versatile gigabit solution, now available as a single wide module.

iMcV-Giga-FiberLinX-III allows for remote configuration and alerts administrators to any potential problems on the long-haul fiber run, provides vital information on link condition and reports data traffic statistics.. In addition to the iMcV-Giga-FiberLinX-III's support for Host/Remote environments, the product also has built-in support for the Unified Management Agent (UMA). With UMA, the central location can manage all Host/Remote pairs installed in an iMediaChassis with the single IP address of the chassis.

Optional single- or dual-SFP port versions or all copper (RJ-45) port versions are also available for complete network flexibility. The iMcVGiga-- FiberLinX-III SFP requires one or two MSA-compliant fiber optic SFP modules (sold separately) to operate. [Copper SFPs are not supported.]

Specifications

General

• Preserves complete end-to-end fiber connection integrity
• Supports Extra Tagging (Q-in-Q)
• Supports 802.3ah OAM (Operation, Administration & Management)
• Bi-directional bandwidth control
• Read/write IEEE 802.1Q VLAN-tags
• QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of priority)
• Layer 2 packet switching, store and forward operation
• Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100 pps for 1000 Mbps
• Features Auto Negotiation and Selective Advertising
• Supports up to 64 VLANs operation
• MTU: Supports over-sized (Jumbo) packets up to 10240 bytes

Security

• Password Control
• Multiple Access Levels: User Assigned Accounts & Access Levels

Management

• SNMP V1 and V2c compatible
• Includes GUI-based iView² software for remote management (WIN and WebServer versions)
• Monitors far-end (remote) status without a physical presence or separate connection
• IEEE 802.3x Flow Control
• Includes DHCP and TFTP clients
• Supports Telnet
• Includes loopback test modes (MAC swap)
• Includes Link Fault Pass Through
• Supports Unified Management Agent (UMA)
• Includes status LEDs

Ethernet Protocols Supported

• IEEE 802.3ab 1000Base-T twisted pair
• IEEE 802.3z 1000Base-X fiber
• IEEE 802.3x Flow Control
• IEEE 802.3i 10Base-T twisted pair
• IEEE 802.3u 100Base-TX twisted pair

Mechanical

• Dimensions Standard single-slot chassis module
• Shipping Weight 0.3 lbs (0.136078 kg)

Power Consumption

• 731mA at 5V

Environmental

• Operating Temperature: +32° to +122° F (0° to +50° C)
• Storage Temperature: -13° to +158° F (-25° to +70° C)
• Humidity: 5% - 95% (non-condensing)

Regulatory Aprovals

• FCC Class A
• UL/cUL, CSA, CE
