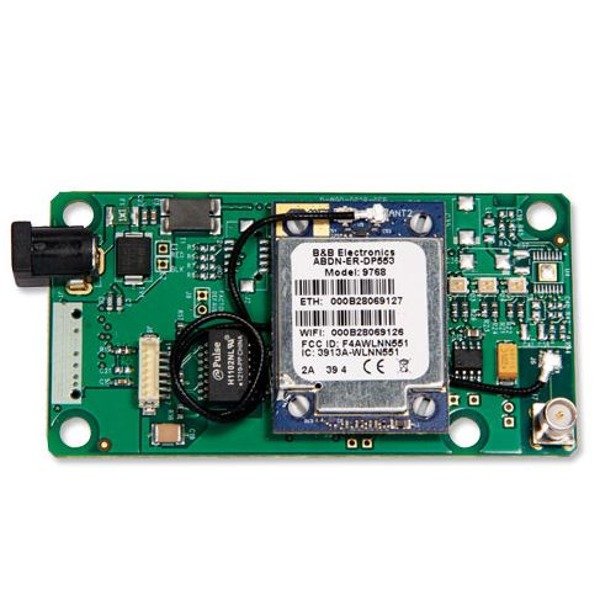

ABDN-DP Serie - Embedded Dual-Band Wireless Board

Der Embedded ABDN von B+B SmartWorx ist eine Dual-Band WIFI Bridge/Router.
Der Embedded ABDN von B+B SmartWorx ist eine Dual-Band WIFI Bridge/Router.
Der ABDN-DP von B+B SmartWorx ist eine Dual-Bnd WIFI Bridge/Router.
Die embedded Dual-Band WIFI Board der ABDN-DP Serie von B+B SmartWorx sind ausgestattet mit Frequenzen von 2.4 & 5 GHz, AirborneM2MTM SpeedLink, Enterprise Class Wireless Security, Airborne Management Center unterstützung und Betriebstemperaturen von -20°C bis 85°C.

zum Merkzettel hinzufügen

Datenblatt zusenden


Embedded ABDN Series - Airborne Embedded Dual Band Wireless Board

The AirborneM2M™ line of enterprise wireless Ethernet Routers and Bridges are built for networking equipment in an array of machine to machine (M2M) applications. The small compact form factor, integrated options and ease of use make it ideal for commercial enterprise environments.

Dual-Band Wi-fi

The AirborneM2M™ products establish wireless connections over both 2.4 GHz and 5 GHz bands. Whenever the 2.4 GHz airspace is overcrowded with competing wireless transmission, AirborneM2M™ products can be switched over to 5 GHz band to keep data flowing.

Enterprise Class Security

Security protocols are important to mission-critical wireless M2M applications. AirborneM2MTM multi-layered security approach addresses the requirements of Enterprise-class networks and corporate IT departments. These advanced security features include wireless security (801.11i/WPA2 Enterprise); network security (EAP authentication and certificate support); communication security (SSH functionality and fully encrypted data tunnels); and device security (multi-level encryption capability to protect configuration data).

SpeedLink™ Roaming

The latest AirborneM2M SpeedLink™ roaming feature further enhances the high level of connection reliability. SpeedLink™ enables AirborneM2MTM devices to roam quickly and freely throughout a wireless network without loosing important data. If you’re walking around a hospital or driving through a warehouse, SpeedLink™ ensures you stay connected.

Specifications

Technologie

  • IEEE 802.11 a/b/g/n
  • WI-FI Compliant

Wired Interface

  • 10/100 Ethernet Port (Bridge, Router (NAT3) Modes)

Frequency

  • 2.4~2.4835 GHz (US/Canada/Europe)
  • 5.150~5.350 GHz
  • 5.725~5.825 GHz

Channels

  • 13 Channels 802.11 b/g
  • 19 Channels 802.11a

Wireless Data Rates

  • 802.11b = 11, 5.5,2,1 Mbps
  • 802.11a/g 54, 48, 36, 24, 18, 12, 9, 6 Mbps
  • 802.11n 65, 58.5, 42, 39, 26, 19.5, 13, 6.5 Mbps

Network Protocols

  • TCP/IP
  • ARP
  • ICMP
  • DHCP
  • DHS
  • UDAP
  • TFTP
  • UDP
  • PING

Transmit Power

  • 802.11b 15 dBm (31.6mW)
  • 802.11g 12.6dBm (18.12mW) 802.11a
  • 17 dBm (50.1mW)

Security Protocols

  • Disabled
  • WEP 64 & 128bit
  • WPA (TKIP)
  • WPA (AES)
  • WPA2 (AES)
  • 802.1x (EAP) Supplicant 802.11I
  • WPA & WPA2 Enterprise supplicants (EAP-TLS, EAP-TTLS)
    • MSCHAPv2
    • EAPTTLS (MDS5)
    • EAP-PEAPv0 MSCHAPv2, LEAP
  • EAP-FAST
  • LEAP
  • Supports Certificates and Private Key Upload and Storage (Multiple)

Power Supply

  • 5.0VDC+/-5%

Environmental

  • Operating Temperature: -20° to +85°C
  • Storage Temperature: -20° to +85°C
  • Relative humidity: 5% - 95% (non-condensing)
  • Vibration: 20G peak-to-peak, 20Hz-2KHz swept
  • Shock: 1500G peak-to-peak, 0.5mS duration

Agency Approvals

  • CE ETSI EN300 328
  • RoHS & WEEE compliant
Modelle
ABDN-ER-DP553 Dual Band 802.11 (2.4 GHz, 5 GHz)Ethernet bridge and router OEM Version
ABDN-SE-DP553 ENTERPRISE WLAN SDS, 802.11A/B/G/N, RS232/422/485, OEM
ABDN-ER-DP551 Dual Band 802.11 (2.4 GHz, 5 GHz)Ethernet bridge and router with WPA2-Enterprise, WPA, WEP, EAP Security Support Advanced Enterprise Security
ABDN-ER-DP551U Dual Band 802.11 (2.4 GHz, 5 GHz)Ethernet bridge and router with WPA2-Enterprise, WPA, WEP, EAP Security Support Advanced Enterprise Security; power via USB cable (included)
ABDN-SE-DP551 Dual Band 802.11 (2.4 GHz, 5 GHz) Wifi Serial Server with WPA2-Enterprise, SPA, WEP, EAP Security Support Advanced Enterprise Security
