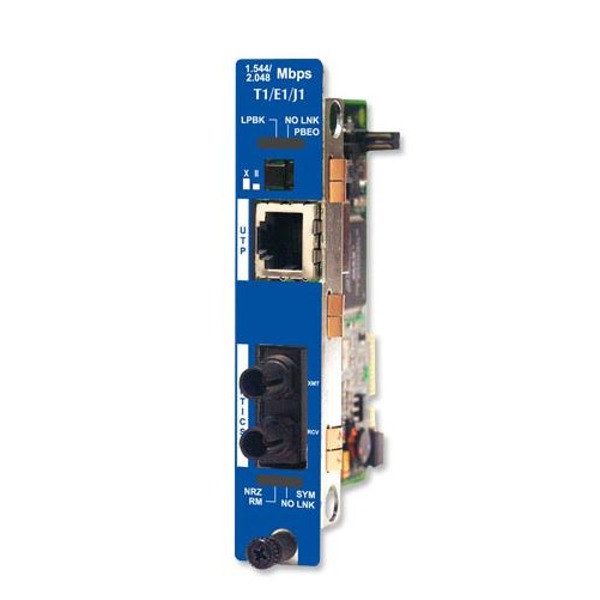

IE-IMCV-T1/E1/J1 Repeater Serie - T1/E1/J1 Medienkonverter

IE-IMCV-T1/E1/J1 Repeater Series - T1/E1/J1 Media Converter

SNMP-manageable, the iMcV-T1/E1/J1 converter series of modules extend 1.544 Mbps T1/J1 and 2.048 Mbps E1 copper-based PBX, router and switch circuits over regular duplex fiber or single-strand fiber optics. Supporting fiber distances of up to 80 km, the iMcV-T1/ E1/J1 series of converters include built-in jitter removal, line integrity testing, diagnostic tools (Loopback mode and Transmit Data Source) and remote management features.

Select from the iMcV-T1/E1/J1, offering standard repeater-like functionality, or the IE-iMcV-T1/E1/J1-LineTerm which incorporates advanced features such as Line Terminating functionality and config control, support for both Alarm Indication Signals (AIS) and Remote Alarm Indications (RAI).

Both versions are installed as a HOST-REMOTE pair and can be remotely managed when the HOST is installed in an iMediaChassis with an SNMP–Management Module. This enables network managers to conduct loopback testing, to monitor, and to manage units located up to 80 km away.

Spezifikationen

Technische

• Protocol-Selectable — Operates at T1/J1 (1.544 Mbps) and E1 (2.048 Mbps) protocols
• Supports Alarm Indication Signals (AIS)
• Internal Test Head Function (PRBS, 1/0, All 1’s)
• Ability to manage remote unit from host end
• Supports fiber and copper Loopback
• Selectable line buildout (0 - 655 ft.)
• Includes DTE/DCE switch on converter
• Installs in any iMediaChassis or MediaChassis chassis*
• Supports GUI-Based iView²
• CSU Line Gain (7.5, 15, 22.5 db)
• Monitor Boost (20, 26, 32 db)
• Supports secondary line protection
• 50/125µm or 62.5/125µm multi-mode fiber
• 9/125µm single-mode fiber
• Available for single-strand fiber
• Connectors: RJ-48 and ST, SC

Standards

• ANSI T1.102-1993
• ANSI T1.107-1995
• GR-820-COR

Mechanische

• Dimensions 4.19”H x 0.78”W x 2.75”D (10.74 x 2 x 7.05 cm)
• Shipping Weight 0.30 lbs (0.11 kg)

Strom

• 0.55A @ 5V (Typical)

Umgebung

• Operating Temperature: +32° to +122° F (0° to +50° C)
• Storage Temperature: -13° to +158° F (-25° to +70° C)
• Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Zertifikate

• FCC Class A
• UL/cUL
• CSA
• CE
