McBasic Gigabit LFPT Serie - Kompakter Medienkonverter mit 1000 Mbps

McBasic Gigabit LFPT - 1000 Mbps Compact Media Converters

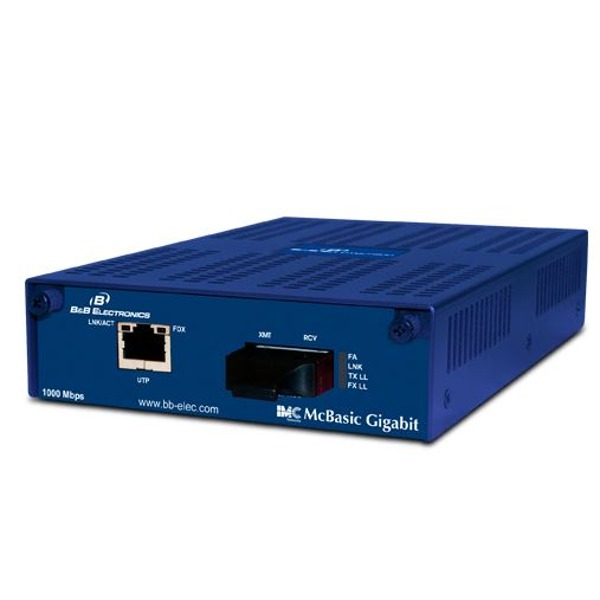

The McBasic’s small, table-top design and durability make it perfect for installation anywhere space is limited. Additionally, the McBasic comes with an internal AC power supply. This feature significantly increases reliability over products that use bulky, external AC/DC power transformers.

LinkLoss, FiberAlert and Link Fault Pass Through (LFPT) that make isolating fiber breaks easier should they occur. The McBasic also features AutoCross to support crossover/pass-through on the twisted pair connection and diagnostic LEDs. Most McBasic units are available with single-strand fiber which can effectively double the capacity of fiber by allowing two individual channels to share one strand of fiber; Full-Duplex data travels on different wavelengths — 1310 nm and 1550 nm, for example.

Specifications

Technical

• Include MDI/MDIX switch
• Includes fixed, internal AC power
• 50/125µm or 62.5/125µm multi-mode fiber
• 9/125µm single-mode fiber
• Includes diagnostic LEDs
• IEEE 802.3ab 1000Base-T twisted pair
• IEEE 802.3z 1000Base-LX or SX fiber
• Features Link Fault Pass-Through (LFPT) and FiberAlert

Connectors

• RJ45 and SC
• Supports Half- and Full-Duplex operation

Mechanical

• Dimensions 1.64”H x 4.75”W x 7.3”D (4.2 cm x 12.17 cm x 18.71 cm)
• Shipping Weight 1.7 lbs (0.77 kg)

Power Rating

• 100-240 VAC, 50/60Hz, 1.0A

Environmental

• Operating Temperature +32° to +122° F (0° to +50° C)
• Storage Temperature: 0° to +160° F (-20° to +70° C)
• Operating Humidity 5% to 95% (non-condensing)

Regulatory Approvals

• FCC Class A
• UL/cUL, CSA, CE
