McPC Serie - Mediennkonverter Karte

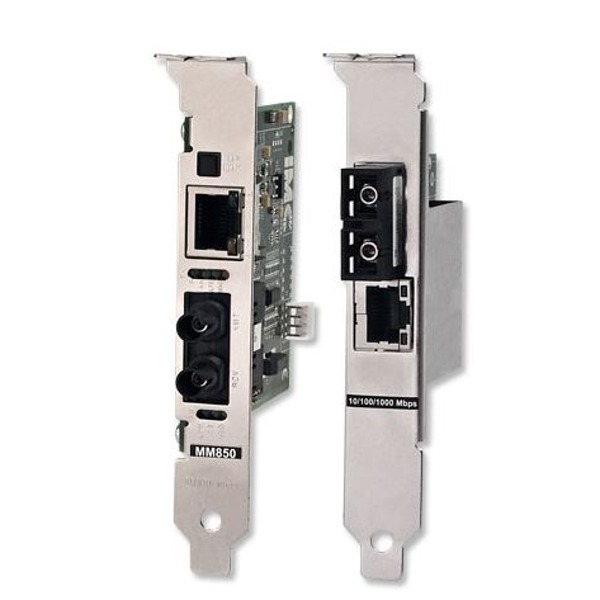

McPC Series - 100, 10/100 & Gigabit PC Card Media Converters

McPC Series Media Converters are ideal for Fiber-to-the-Desktop (FTTD) applications and for companies with frequent workstation moves and changes. Installing inside a PC or workstation, and plugging into an adjacent network interface card (NIC), these compact units eliminate the need to place Media Converters on top of desks or computers, reducing clutter of cords and adapters at the workspace.

The McPC series includes

• 100 Mbps Fast Ethernet (TX/FX) - Designed to connect to NIC cards running at Fast Ethernet speeds
• 10/100 Mbps - A media converter that auto-senses the connected device’s rate (10 Mbps or 100 Mbps) and duplex mode (Half-Duplex/Full-Duplex)
• 1000 Mbps Gigabit Ethernet (TX/SX or /LX) - Converts 1000 Mbps over copper to 1000 Mbps over fiber. Ideal for bringing Gigabit speed connectivity to the desktop

McPC converters accommodate crossover or pass through cables, with either a pushbutton MDI/MDIX switch or AutoCross, a feature which automatically selects the correct operating mode. Units also feature handy status LEDS to assist in network diagnostics and troubleshooting. In addition, McPC TX/FX and McPC 10/100 include troubleshooting features that make it easy to isolate fiber breaks.

Specifications

Technical

• Save money by keeping existing copper network card (NIC) and converting inside the PC
• No drivers to install; McPC mounts inside any PC or workstation with a standard PCI or ISA slot
• Includes a standard 4-pin peripheral power connector
• AutoCross or push-button selectable MDI/MDIX, depending on the unit
• 50/125µm or 62.5/125µm multi-mode fiber
• Includes status LEDs
• RoHS-Compliant
• Plug-and-play operation

McPC 100 Mbps (TXFX)

• 100 Mbps twisted pair copper to fiber media conversion
• IEEE 802.3u 100Base-TX twisted pair
• Features LinkLoss and FiberAlert
• Features Auto Negotiation

Mcpc 10/100 mbps (Tp-tx/fx)

• 10 Mbps and 100 Mbps to 100 Mbps twisted pair, auto-sensing media conversion
• IEEE 802.3 10Base-T twisted pair
• IEEE 802.3u 100Base-TX twisted pair
• IEEE 802.3u 100Base-FX or SX fiber
• Features Auto Negotiation

MCPC Gigabit

• 1000 Mbps twisted pair to fiber media conversion
• IEEE 802.3ab 1000Base-T twisted pair
• IEEE 802.3z 1000Base-LX or SX fiber
• Optionally available for single-strand fiber

Connectors

• RJ45, ST and SC
• Supports Half- and Full-Duplex operation

Mechanical

• PCI, ISA Slot Configurations
• Shipping Weight 0.6 lbs (0.22 kg)

Environmental

• Operating Temperature +32° to +122° F (0° to +50° C)
• Storage Temperature: -4° to +158° F (-20° to +70° C)
• Operating Humidity 5% to 95% (non-condensing)

Regulatory Approvals

• FCC Class B
• UL/cUL, CSA, CE
