EIS-Rack Serie - 19 Zoll Rack und Stromversorgung

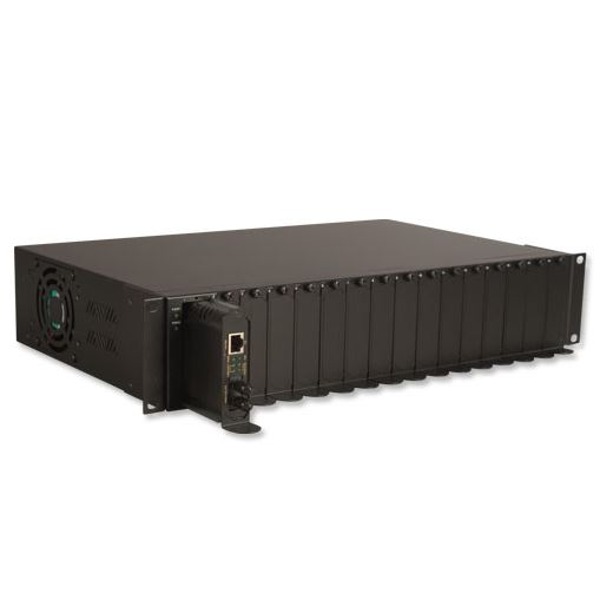

Der EIS-Rack-16 von B+B SmartWorx ist ein Rack Gehäuse.
Der EIS-Rack-16 von B+B SmartWorx ist ein Rack Gehäuse.
Der EIS-Rack-PS von B+B SmartWorx ist eine Rack Stromversorgung.
Die 19 Zoll Gehäuse für die Medienkonverter der EIS Serie von B+B SmartWorx sind ausgestattet mit bis zu 16 Slots (für Medienkonverter oder Ethernet Extender), Hot-Swap Funktion und einer redundaten Stromversorgung.

zum Merkzettel hinzufügen

Datenblatt zusenden


EIS-Rack Series - 19 Inch Rack and Power Supply

House up to sixteen Media Converters and Ethernet Extenders  (EIS series) Non-stop operation and minimal downtime Hot-swappable: Media Converters, Ethernet Extenders and redundant power supply modulesRedundant 100 - 240VAC 50 - 60Hz Internal Universal PSU or 48VDC Power inputsPower redundancy: The other redundant power supply module is capable of taking over immediately if one of the power supply modules fails Load sharing: Two internal power supply modules provided for load sharing purposes Power isolation: Media Converter and Ethernet Extender bay power isolation ensures each bay is electrically isolated from each otherOver current protection: Fuse on PCBA for each Media Converter and Ethernet Extender bay and power supply module0°C to 45°C (32°F to 113°F) operating temperature range Metal case, standard 19" rack-mount size, two-unit-height Supports Rack Mounting installation.

  • New Gigabit option
  • Desk or wall mount as stand-alone product or install in 19-inch rack system
  • Rack Chassis
    • Holds up to 16 of the EIS seris media converters
    • Includes one power supply, purchase a second for redundancy
    • Standard 19-inch rack mount size (2U height)
    • Front panel LEDs for power status
    • Hot swappable (both media converters and power supply)
    • Two removable cooling fans for ventilation in the chassis

Specifications

Power-Input

  • 100 - 240VAC, 50 - 60Hz Internal Universal PSU
  • +/-48VDC

Power Consumption

  • System: 5.4W Max.

Mechanical

  • Casing
    • Metal case
  • Dimensions
    • 440mm (W) x 276mm (D) x 90mm (H)
    • 17.32" (W) x 10.87" (D) x 3.54" (H)
    • Standard 19" rack-mount size, two-unit-height
  • Weight
    • 6.8Kg (14.96lbs.)

Installation

  • Rack Mounting

Interface

  • LED Indicators
  • Per Unit: Power Status (Power)

Environment

  • Operating Temperature
    • 0°C to 45°C (32°F to 113°F)
  • Storage Temperature
    • -10°C to 70°C (14°F to 158°F)
  • Ambient Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory Approvals

  • ISO
  • Manufactured in an ISO9001 facility

Safety

  • UL60950-1

Emission Compliance

  • CE Mark Class A
  • FCC Part 15 Class A
Modelle
EIS-RACK-16 Media Converter 19 Inch 2U Rack Chassis - 16 Slots
EIS-RACK-PS Power Supply For Eis-Rack-16, 84 Watts
EIS-PS-EU Eis Series External Power Adapter 12V Eu Plug
