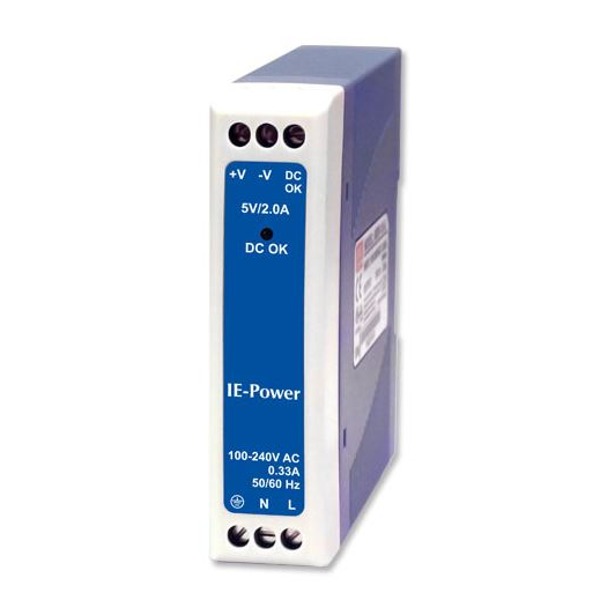

IE-Power/5V Power Supply - Industrielle AC zu DC DIN-Rail Stromversorgung

Der AC-DC-DIN-Rail-PowerSupply von B+B SmartWorx ist eine Stromversorgung.
Der AC-DC-DIN-Rail-PowerSupply von B+B SmartWorx ist eine Stromversorgung.
Der industrielle IE-Power/5V Power Supply von B+B SmartWorx ist eine DC Stromversorgung mit 5V Ausgangsspannung, Betriebstemperaturen von -20°C bis 70°C und ist ideal für die Geräte der IE-MiniMc und IE-MiniFiberLinX-II Serie.

zum Merkzettel hinzufügen

Datenblatt zusenden


IE-Power/5V Power Supply - Industrial Ethernet AC To DC DIN-Rail Power Supply

The compact size of IMC Networks’ IE-Power/5V makes it ideal for space restricted, DIN Rail applications in industrial, automation and military environments including control cabinets and computer rooms. The beneficial low no load power consumption feature expands the use of this power supply to smaller IT applications as well. Additionally, the fully isolated, plastic enclosure protects operators from electrical shock.

Free-air convection cooling eliminates the need for noisy, failure-prone fans. Short circuit, overload and over voltage protection protect your hardware from transient voltage spikes.

IMC Networks products that support the IE-Power/5V include:

  • IE-MultiWay
  • MiniMc, IE-MiniMc
  • Giga-MiniMc
  • IE-GigaMiniMc
  • MiniMc-Gigabit
  • IE-MiniFiberLinX-II
  • AccessConverter
  • IE-ModeConverter

Spezifikationen

  • Universal AC Input/Full Range
  • Short circuit/Overload/Over voltage protection
  • Low no load power consumption <0.75W
  • Compact, fully isolated enclosure
  • Includes 12" Barrel-Connector Power Cable
  • Built-in DIN Rail mount
  • DC OK active LED signal

Zertifikate

  • FCC ClassB
  • UL 508 / cUL
  • TUV EN 60950-1
  • NEC Class 2 / LPS Compliant

Betriebstemperaturen

-4° to +158° F (-20° to +70° C)
20% to 90% (non-condensing)

Lagertemperaturen

-40° to +185° F (-40° to +85° C);
10% to 95% (non-condensing)

Strom

Range:

85 ~ 264 VAC, 120 ~ 370 VDC

Input:

47 ~ 63Hz, 0.33A/115 VAC
0.21A @ 230 VAC

Output:

5V @ 2.0A

Abmessungen

3.54" H x 0.89 W x 3.94" D (9 cm x 2.25 cm x 10 cm)

Gewicht

 0.42 lbs (0.19 kg)

MTBF:

584K hours (min.)

Modelle
806-39753 IE-Power/5V, AC to DC (DIN Rail) Power Adapter (-20° to +70° C)
