MergePoint Unity KVM over IP Switches mit 8-32 Ports

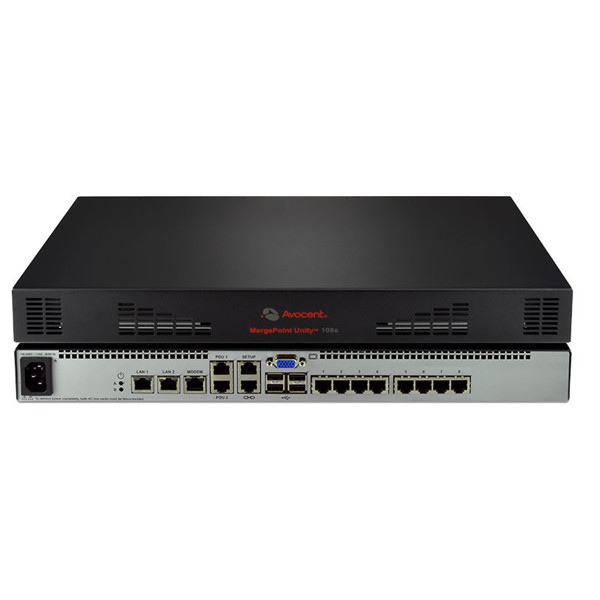

MPU108ESAC 8 Port KVM over IP Switch von Emerson Network Power (Avocent).
MPU108ESAC 8 Port KVM over IP Switch von Emerson Network Power (Avocent).
MPU108EDAC 8 Port KVM over IP Switch von Emerson Network Power (Avocent).
MPU1016SAC 16 Port KVM over IP Switch von Emerson Network Power (Avocent).
MPU1016DAC 16 Port KVM over IP Switch von Emerson Network Power (Avocent).
MPU2016SAC 16 Port KVM over IP Switch von Emerson Network Power (Avocent).
MPU2016DAC 16 Port KVM over IP Switch von Emerson Network Power (Avocent).
MPU4032DAC 32 Port KVM over IP Switch von Emerson Network Power (Avocent).
MPU8032DAC 32 Port KVM over IP Switch von Emerson Network Power (Avocent).
Diagramm zur Anwendung der MergePoint Switches von Emerson Network Power (Avocent).
MergePoint Unity von Emerson Network Power (Avocent) sind KVM over IP Switches mit 8 bis 32 KVM, USB und seriellen Ports auf 1-8 digitale KVM Anschlüsse mit dualer oder einfacher AC Stromversorgung.
Preis zusenden oder Anfrage senden

zum Merkzettel hinzufügen

Datenblatt zusenden

MergePoint Unity KVM over IP Switches mit 8-32 Ports für 1-8 KVM Konsolen

The Avocent MergePoint Unity™ switch is the fourth-generation KVM over IP switch from Avocent® solutions.
This switch provides IT administrators a complete remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices.

The Avocent MergePoint UnityTM switch enhances the in-band management typically done through the NIC of IT equipment by providing secure and remote out-of-band connections directly to the physical KVM, USB and serial ports. This unified approach enables IT administrators a faster method to diagnose, reconfigure or restore equipment to meet SLAs and minimize downtime.

Improve Remote Management and Staff Efficiency

  • Reduce the time required to remotely diagnose/reconfigure/repair/restore servers as well as network devices and other hardware with serial configuration and/or management consoles.
  • Complement in-band tools to create a more complete remote management solution to access servers and network equipment at remote locations.
  • Virtual media enables remote USB connections to map CD-ROM and other USB mass storage devices directly to remote servers to transfer/copy files, load updates or install new applications, etc.
  • Integrated serial device support allows secure SSH connections to the physical serial ports of devices attached to the MPUIQ-SRL module. The Cisco® configuration settings electronically pin out the module to enable a fast and direct connection to Cisco configuration ports, without the need for any additional external wiring adapters or special wiring.

Improve Physical Security

  • Remote smart card/CAC reader support is provided for advanced security requirements. Using the virtual media capabilities of the Avocent MergePoint UnityTM switch, a smart card reader can be mapped from a desktop PC out to a remote server.
  • Reduce the need to physically enter the data centers for local access and control. The Avocent MergePoint UnitTM switch provides remote users the capabilities of a direct physical connection from anywhere to KVM, USB and serial ports of servers and other IT equipment.

Diagramm

mergepoint-unity-kvm-switches-emerson-network-power-avocent-diagramm

Details zum MergePoint Unity KVM over IP Switch

Mechanical

Size: HxWxD
1.72 in. (4.37 cm) H
17 in. (43.18 cm) W
16- or 32-port models: 13.38 in. (34 cm) D
4- or 8-port models: 9.2 in. (23.4 cm) D

Weight:
4- and 8-port single power: 6.3 lbs. (2.86 Kg)
8-port dual power: 6.8 lbs. (3.08 Kg)
16- and 32-port single power: 8.1 lbs. (3.67 Kg)
16- and 32-port dual power: 8.6 lbs. (3.9 Kg)

Ports/Connections

Network: Number: 2
Type: 10/100/1000 Ethernet

Power Control Ports: Number: 2
Type: RS232 serial
Connector: 8-pin modular

Device Ports: Number: 4, 8, 16 or 32
Connector: 8-pin modular

Local Console: Number: 1
Connector: USB and VGA

Supported Target Video: VGA, DVI-I,
Display Port and HDMI

Power Supply

Number: Single or dual power supplies
Type: Internal
AC input range: 100-240V

Video Resolution

Local and remote up to 1600x1200

Standards

Approved Agency: UL, FCC, cUL, ICES-003, CE, VCCI, KCC, C-Tick, GOST, FIPS 140-2 compliant cryptography – The FIPS mode of operation uses an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1051)

MergePoint KVM over IP Switches mit einfacher AC Stromversorgung
MPU108ESAC8 Port KVM Switch, 1 digitaler KVM Anschluss
MPU1016SAC16 Port KVM Switch, 1 digitaler KVM Anschluss
MPU2016SAC16 Port KVM Switch, 2 digitale KVM Anschlüsse
MPU2032SAC32 Port KVM Switch, 2 digitale KVM Anschlüsse
MPU4032SAC32 Port KVM Switch, 4 digitale KVM Anschlüsse
MPU8032SAC32 Port KVM Switch, 8 digitale KVM Anschlüsse
MergePoint KVM over IP Switches mit dualer AC Stromversorgung
MPU108EDAC8 Port KVM Switch, 1 digitaler KVM Anschluss
MPU1016DAC16 Port KVM Switch, 1 digitaler KVM Anschluss
MPU2016DAC16 Port KVM Switch, 2 digitale KVM Ausgänge
MPU2032DAC32 Port KVM Switch, 2 digitale KVM Ausgänge
MPU4032DAC32 Port KVM Switch, 4 digitale KVM Ausgänge
MPU8032DAC32 Port KVM Switch, 8 digitale KVM Ausgänge
