PortServer® TS MEI Hardened Serie - Robuster Geräteserver mit RS-232/422/485 Standards

Der PortServer TS MEI Hardened von Digi ist ein robuster Geraeteserver.
Der PortServer TS MEI Hardened von Digi ist ein robuster Geraeteserver.
Die Geräteserver der PortServer® TS MEI Hardened Serie von Digi sind ausgestattet mit einer robusten Bauweise, NEMA TS 2 Zertifikat, Class 1 Div 2, RS-232/422/485 Standards und 1, 2 oder 4 serielle Ports.
Preis zusenden oder Anfrage senden

zum Merkzettel hinzufügen

Datenblatt zusenden

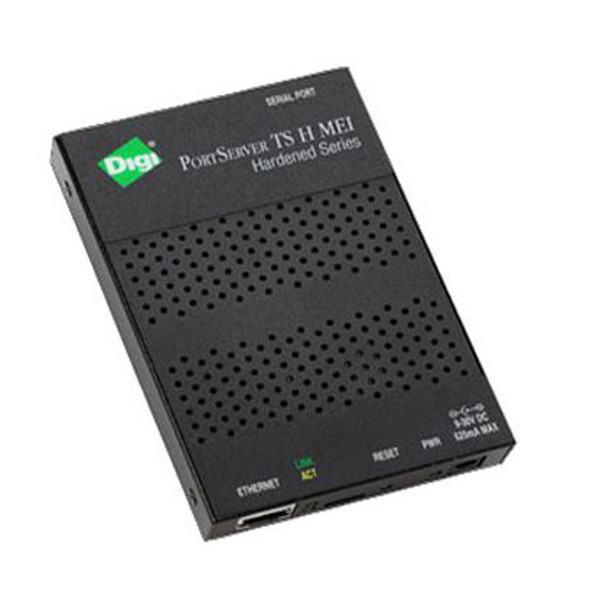

PortServer TS MEI Hardened Series - Rugged Device Server With 1 - 4 Ports

The PortServer TS MEI Hardened family of serial servers is designed for serial port expansion where environmental hazards demand extended safety features and operating tolerances. Extended operating temperature (-35° C to +74° C), conformal coated circuit board, NEMA TS 2 and Class 1 Div 2 certifications make these rugged serial servers ideal for use in outdoor applications. Digi's patented RealPort® COM port redirector creates a local COM or TTY port on the host computer, allowing existing software applications to work without modification.

The PortServer TS H MEI model is designed for serial-to-Ethernet connectivity in utility plants, pipelines, traffic management facilities and other remote locations requiring extended operating temperatures.

Designed to meet NEMA TS 2 and other unique requirements in traffic management installations, the PortServer TS Hcc MEI* model is ideal for network-enabling and remotely managing variable message signs, loop detectors, ramp meters or any RS-232/422/485 serial device. Specialized features include conformal coated PCA for moisture and corrosion protection, screw terminal power connector for durable and reliable power feed, and extended operating temperature tolerance.

The PortServer TS Haz MEI serial server offers a conformal coated PCA, extended temperature tolerance and the ability to safely perform in flammable environments (Class 1, Division 2 certified). It is ideal for serial port expansion in factory automation and utility management (gas, electric and water) applications.

Features
ManagementHTTP/HTTPS, PPP, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool
PortServer TS H MEIWall mount kit (included), Full modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover adapter included for optional serial configuration
PortServer TS Hcc MEIWall mount kit (included), Full modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover adapter included for optional serial configuration
PortServer TS Haz MEIFull modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover adapter included for optional serial configuration
SecuritySSHv2, SSL/TLS
SoftwareDevice-initiated patented RealPort® COM port redirector
Status LEDsLink, Power, Activity, Status
Operating SystemsAIX, HP-UX, Linux®, SCO® OpenServer™ 5, SCO® OpenServer™ 6, Solaris™ Intel, Solaris™ SPARC, Windows XP®, Windows Server® 2003, Windows Server® 2008, Windows Vista®, Windows 7 Note: TCP/UPD Socket Services are operating system independent
Dimensions (L x W x D)5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm)
Weight2.25 oz (64.00 g)
Interfaces
PortServer TS H MEI1/2/4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
PortServer TS Hcc MEI1/2/4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
PortServer TS Haz MEI4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
Ethernet
Physical Layer1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex
Power Requirements
PortServer TS H MEIOptional 12 VDC extended temperature power supply sold separately; Bare-wire "pigtail" connector included
PortServer TS Hcc MEIOptional 12 VDC extended temperature power supply sold separately
PortServer TS Haz MEIOptional 12 VDC extended temperature power supply sold separately
Power ConsumptionTypical: 4 W; Max: 6 W
Surge Protection4 kV burst (EFT) per EN61000-4-4, 2 kV surge per EN61000-4-5
Environmental
Operating Temperature-35° C to +74° C (-31° F to 165° F)
Storage Temperature-40° C to +85° C (-40° F to +185° F)
Relative Humidity5% to 95% (non-condensing)
Ethernet Isolation1500VAC min per IEEE802.3/ANSI X3.263
Serial Port Protection (ESD)+15 kV air 6 AP and +8 kV contact discharge per IEC 100-4-2
Approvals
PortServer TS H MEIUL/CL60950, IEC60950, CB
PortServer TS Hcc MEIUL/CL60950, IEC60950, CB
PortServer TS Haz MEIClass 1 Division 2, UL/CL60950, IEC60950
Emissions/ImmunityCE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, VCCI V-3/99 .05
