PortServer TS MEI Serie - Serieller RS-232/422/485 Geräteserver mit bis zu 16 Ports

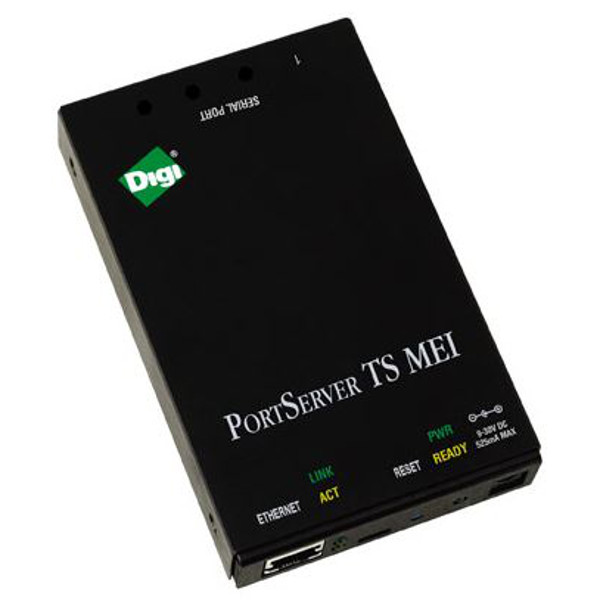

Der PortServer TS MEI 1 von Digi ist ein serieller Geraeteserver mit einem Port.
Der PortServer TS MEI 1 von Digi ist ein serieller Geraeteserver mit einem Port.
Der PortServer TS MEI 16 von Digi ist ein serieller Geraeteserver mit 16 Ports.
Die seriellen Geräteserver der PortServer® TS MEI Serie von Digi sind ausgestattet mit bis zu 16 RJ-45 Ports, RS-232/422/485 Standards, einer Ethernet Schnittstelle, SSHv2 Verschlüsselung und RealPort® mit SSL Übertragung.
Preis zusenden oder Anfrage senden

zum Merkzettel hinzufügen

Datenblatt zusenden

PortServer TS MEI Series - Device Server With RS-232/422/485 Standards

PortServer TS MEI (Multi-Electrical Interface) serial servers offer RS-232/422/485 serial port expansion, making it easy to connect any serial device to your network. Available in one-, two-, four-, eight- or 16-port models, these serial servers combine the inherent benefits of data networking with proven asynchronous connectivity. They deliver powerful, yet simple Ethernet connectivity for all your serial devices.

PortServer TS MEI device servers deliver universal and powerful features including data security via SSHv2, port buffering, and full SNMP management, making them ideal for serial port expansion application including manufacturing floor, gas pumps and industrial automation, where device management and monitoring are critical.

All Digi device servers include Digi’s patented RealPort® COM port redirector technology, which makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing existing software applications to work without modification.

Features
ManagementHTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority - Remote management diagnostics and auto-discovery tool
ProtocolsUDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, PPP Reverse Telnet, Modbus to Modbus/TCP protocol conversion support, Reverse SSH
SoftwareDevice-initiated patented RealPort® COM port redirector
Status LEDsLink, Activity, Power, Status
Dimensions (L x W x D)5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm)
Weight2.25 oz (64.00 g)
SecuritySSHv2, SSL/TLS
Operating SystemsAIX, HP-UX, Linux®, SCO® OpenServer™ 5, SCO® OpenServer™ 6, Solaris™ Intel, Solaris™ SPARC, Windows XP®, Windows Server® 2003, Windows Server® 2008, Windows Vista®, Windows 7 Note: TCP/UPD Socket Services are operating system independent
OtherFull modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover adapter included for optional serial configuration
Interfaces
PortServer TS 1 MEI1 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
PortServer TS 2 MEI2 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
PortServer TS 4 MEI4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
Ethernet
Ports1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex
Power Requirements
Power Input9-30 VDC with locking barrel power connector
Power Supply (Included)North America: 12VDC/.5A max out; 120VAC in (wall mount); International: 12VDC/.5A max out; 100-240VAC in (small brick)
Power Supply12 VDC extended temperature power supply sold separately
Power ConsumptionTypical: 4 W; Max: 6 W
Surge Protection4 kV burst (EFT) per EN61000-4-4, 2 kV surge per EN61000-4-5
Environmental
Operating Temperature0° C to +60° C (32° F to 140° F)
Storage Temperature-40° C to +85° C (-40° F to +185° F)
Relative Humidity5% to 95% (non-condensing)
Ethernet Isolation1500 VAC min per IEEE802.3/ANSI X3.263
Serial Port Protection (ESD)+15 kV air 6 AP and +8 kV contact discharge per IEC 100-4-2
Regulatory Approvals
SafetyUL/CUL 60950, IEC 60950 & CB
Emissions/ImmunityCE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, CISPR 22, VCCI V-3/99.05
Features
ManagementHTTP/HTTPS, CLI, Digi Port Authority-Remote management diagnostics and auto-discovery tool
ProtocolsUDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, PPP (PAP & CHAP), Extended Telnet RFC 2217, Telnet, Reverse Telnet, R-login, Auto-connect
SecuritySNMP (read/write), SSHv2, RADIUS, Line Printer Daemon (LPD)
SoftwareDevice-initiated patented RealPort® COM port redirector
Status LEDsLink, Power
Operating SystemsAIX, HP-UX, Linux®, SCO® OpenServer™ 5, SCO® OpenServer™ 6, Solaris™ Intel, Solaris™ SPARC, Windows XP®, Windows Server® 2003, Windows Server® 2008, Windows Vista®, Windows 7
Dimensions (L x W x D) 16.80 in x 6.60 in x 1.60 in (42.70 cm x 16.76 cm x 4.06 cm)
Weight7.05 lb (3.20 kg)
Interfaces
PortServer TS 8 MEI 8 RS-232/422/485 RJ-45 (software-selectable)
PortServer TS 16 MEI16 RS-232/422/485 RJ-45 (software-selectable)
ThroughputUp to 230 Kbps
Signal SupportTXD, RXD, RTS, CTS, DTR, DSR and DCD
Ethernet
Ports10/100Base-T 10/100 Mbps; Full or half duplex
Power Requirements
Power InputInternal, 100-250VAC, 50/60 Hz
PortServer TS 8 MEI6 W typical
PortServer TS 16 MEI12 W typical
Environmental
Operating Temperature0° C to 55° C (32° F to 130° F)
Relative Humidity5% to 95% (non-condensing)
Serial Port Protection (ESD)+15 kV human body model
Approvals
SafetyUL60950; CAN/CSA C22.2 No. 60950; EN60950
Emissions/ImmunityFCC Part 15, Subpart B, Class A; EN55022, Class A; EN55024; EN61000-3-2,3
