Security Sensor

Security Sensor von AKCP zum Überwachen von Türen und Fenstern.
Security Sensor von AKCP zum Überwachen von Türen und Fenstern.
Security Sensor von AKCP überwacht Türen und Fenster. Er ist ein magnetischer On/Off-Switch und sendet einer sensorProbe oder securityProbe ein Signal, wenn Türen oder Fenster geöffnet wurden.

zum Merkzettel hinzufügen

Datenblatt zusenden

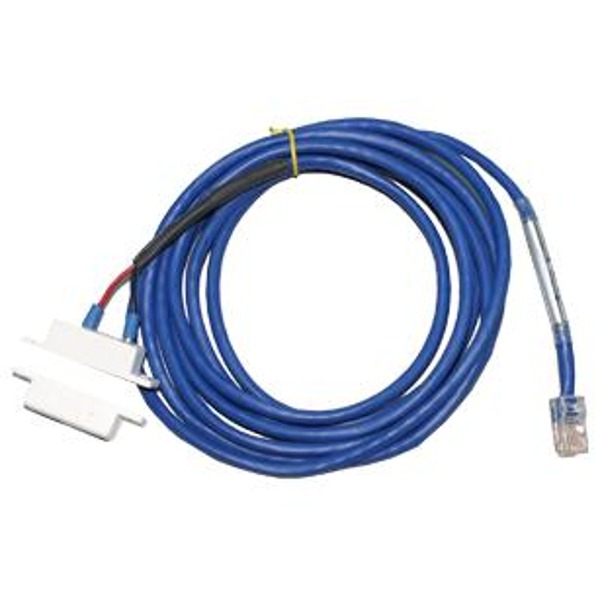

Security Sensor - SSXX

The Security sensor is a magnetic on/off switch for monitoring doors and windows. When the door, or window, opens the input signal is detected by the sensorProbe or securityProbe base unit. Alerts can then be generate to notify you even including images captured from an attached camera to give you instant visual feedback on the situation.

They are active switches that close when one half of the sensor is in close proximity to its mate. When the two sensor pairs are moved apart from each other they open. The base unit senses closure and opening of these switches.

Features And Benefits

  • Unlimited number can be wired in series using one
  • Intelligent sensor port
  • SNMP OID for monitoring across a network
  • No reasonable limitation on distance from base sensorProbe or securityProbe unit
  • Powered by base unit, no additional power source required
Specifications
Measurement RangeAlarm or Normal
Communications CableRJ45 jack to sensor using UTP Cat 5 wire
Sensor TypeOpen/closed contact switch
Power sourcePowered by the sensorProbe. No additional power needed
Power ConsumptionTypical 8.95 mWatt, 1.79mA
Measurement RateMultiple readings every second | Maximum extension cable length 305m (1000 ft.) with approved low capacitance shielded cable or UTP | sensorProbe auto detects the presence of the security sensor | Up to 2 security sensors per sensorProbe2, 8 per sensorProbe8 and securityProbe | Full autosense including disconnect alarm
Modelle
SS1515 feet
SS6060 feet
SS100100 feet
