Rapidport/4® - Switches USB erweiterungs Hubs

Der Raidport/4 von Digi ist ein USB Erweiterungs Hub.
Der Raidport/4 von Digi ist ein USB Erweiterungs Hub.

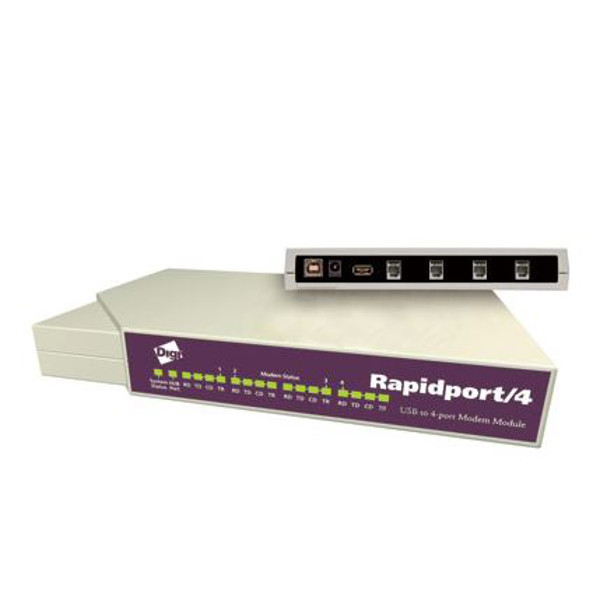

Der Rapidport/4® von Digi ist ausgestattet mit 4 56K V.92 USB Modems in einem einzigen Gehäuse, Access ISP, Fax/Dial-Up Gruppen Applikationen und On-Board USB Hubs.

zum Merkzettel hinzufügen

Datenblatt zusenden


Rapidport/4® - Switched USB Expansion Hubs

The Rapidport/4 four-port USB modem module is a flexible USB based remote access solution for Windows platforms. This external, user-installable solution plugs into an existing USB port of a PC, thin client or server, providing four 56K V.92 modems. Rapidport/4 gives network users access to ISP, fax and other dial-up applications supported by Windows operating systems.

Rapidport/4 is a scalable solution that includes a built-in USB hub, enabling users to daisy-chain up to five Rapidport/4 units for up to 20 modems from a single USB port on a PC or server. The downstream USB port may be used to connect and power any 500 mA USB peripheral device, including Edgeport® USB-to-serial converters for instant I/O expansion.

Feature-rich design, extensive operating system support and reliable performance make Rapidport/4 ideal for mission-critical enterprise applications.

Features
Ports4 x 56K modems with RJ-11 connectors
Modem StandardsData: 56K V.92, V.90 and enhanced V.34 Error correction: V.42 Data compression: MNP® Class 5; V.42bis Fax: V.17, Group 3, Class 1 and 2
USB Features
PortsOn-board USB hub (Type A downstream connector): Stack and daisy-chain up to 5 Rapidport/4 units; Connect Edgeport USB-to-serial converter for serial device connectivity
VersionUSB 1.1 and USB 1.0 compatible; backward compatibility for USB 2.0
CablesIncludes 1-meter USB cable
General Features
PowerIndividual port power management; 10-26 VDC powered models for mobile applications; 500 mA downstream power available per port; Locking power connector
Operating SystemsLinux®, Windows Vista®, Windows Server® 2008, Windows XP®, Windows® XP Embedded, Windows NT® 4.0, Windows CE, Windows Server® 2003, Windows 2000
LEDsFront panel LEDs display modem and hub status
Dimensions (L x W x H)4.35 in x 7.20 in x 1.03 in (11.05 cm x 18.29 cm x 2.61 cm)
Weight11.00 oz (311.84 g)
OtherNo additional IRQ or memory address requirements; Rack-mountable; Plug and Play
Power Requirements
Power InputShips with plug-mounted 120-230VAC 50-60 Hz at 5VDC @ 3 Amps max
Environmental
Operating Temperature0° C to 40° C (32° F to 104° F)
Relative Humidity0% to 95% (non-condensing)
Approvals
SafetyEN60950, UL 1950, CSA 2.2 No. 950
Emmissions/ImmunityCE, FCC Part 15, Class B, EN55022 Class B, EN55024, EN50082-1
