APMN Serie - Airborne M2M Embedded

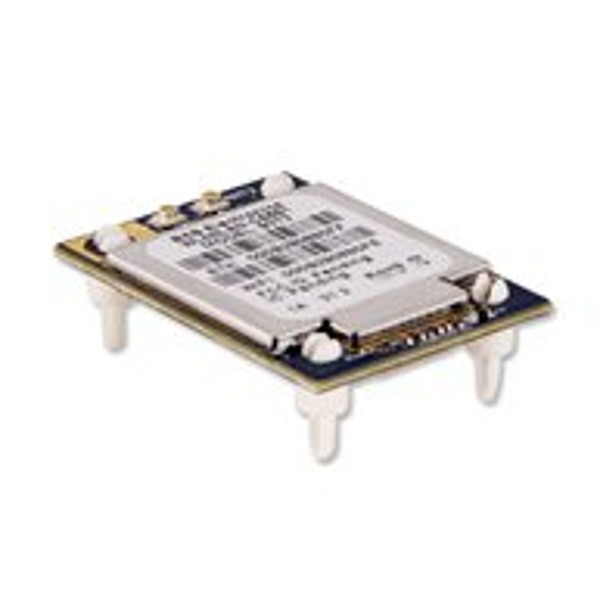

Der APMN-Q551 von B+B SmartWorx ist ein WIFI Access Modul.
Der APMN-Q551 von B+B SmartWorx ist ein WIFI Access Modul.
Die WIFI Access Module der APMN Serie von B+B SmartWorx sind ausgestattet mit Dual-Band (2.4 & 5 GHz), AirborneM2M Firmware, Speed Link und PortFlex.

zum Merkzettel hinzufügen

Datenblatt zusenden


AirborneM2M Embedded Dual Band Access Point Module  (2.4 GHz, 5 GHz)

The AirborneM2M line of highly-integrated 802.11 wireless access point modules allow OEMs to Wi-Fi enable devices used in an array of machine-to-machine (M2M) applications. B&B delivers all of the necessary RF technology networking stacks and advanced security features in a compact, single-board package, reducing integration costs for OEMs and providing for a quick time to market.

Big Performance in Small and Ruggedized Package

The AirborneM2M series delivers the industry’s most rugged, highly integrated, embedded wireless access point Wi-Fi module solution AirborneM2M modules meet extended operating temperature and shock vibration specifications of the most demanding M2M applications.

Utilizing a 32bit ARM9 processor and the high-performance Atheros AR6203 802.11 radio, the new AirborneM2M modules deliver increased transmit power and receive sensitivity, contributing to superior range performance.

SpeedLink™ Roaming

The new AirborneM2M Speed Link roaming feature provides enhanced connection reliability, enabling OEM devices to roam freely within a wireless network without loss of data or connection.

Flexible & Easy to Integrate

AirborneM2M incorporates support for both wireless access point and serial to Wi-Fi communications. Utilizing AirborneM2M Port Flex capability, OEMs may configure via software any combination of UART, SPI, Ethernet, GPIO and 802.11 interfaces. Each individual port can be independently configured.

QUICK TIME TO MARKET AND REDUCED INTEGRATION COSTS

  • Quick time to market and reduced integration costs
  • 802.11a/b/g/n Wi-Fi radio  (2.4 GHz, 5 GHz)
  • AirborneM2M Power Save firmware reduces power consumption  and extends battery life in mobile devices
  • Extended operating temperature Range (-40°C to +85°C) and  environmental specifications
  • AirborneM2M Speed Link roaming provides enhanced connection  reliability
  • AirborneM2M PortFlex capability enables any combination of  communication ports (UART, SPI, GPIO, Ethernet and 802.11  interfaces)
  • FCC Part 15 Class B Sub C Modular Approval minimizes regulatory  requirements
  • Backwards compatible with previous generations of AirborneM2M  embedded modules
  • Supported by Airborne Management Center (AMC) device discovery, management and control application software
Modelle
APMN-Q551Access Point, Router, Client
WLNN-EK-DP551Development Kit
